How to Change a Dyson V6 Battery (Fast, Safe & Easy)
Applies to: Dyson V6 family (e.g., SV03, SV05, SV06, SV07, SV09)
Is your Dyson V6 not holding charge, cutting out, or pulsing under load? In most cases, a quick battery swap and a fresh filter bring the suction back. This guide shows you how to replace a Dyson V6 battery in under 2 minutes, with tips we use every day in the Vac Revive workshop.
Shop Tested V6 Parts
- V6 Genuine Battery (tested) — Buy now
- V6 Battery — Aftermarket High Capacity — Buy now
- V6 Filter Set (pre + HEPA post) — Buy now
Tip: If the V6 still pulses after a new battery, it’s almost always the filter/airflow. Replace or clean the filter first.

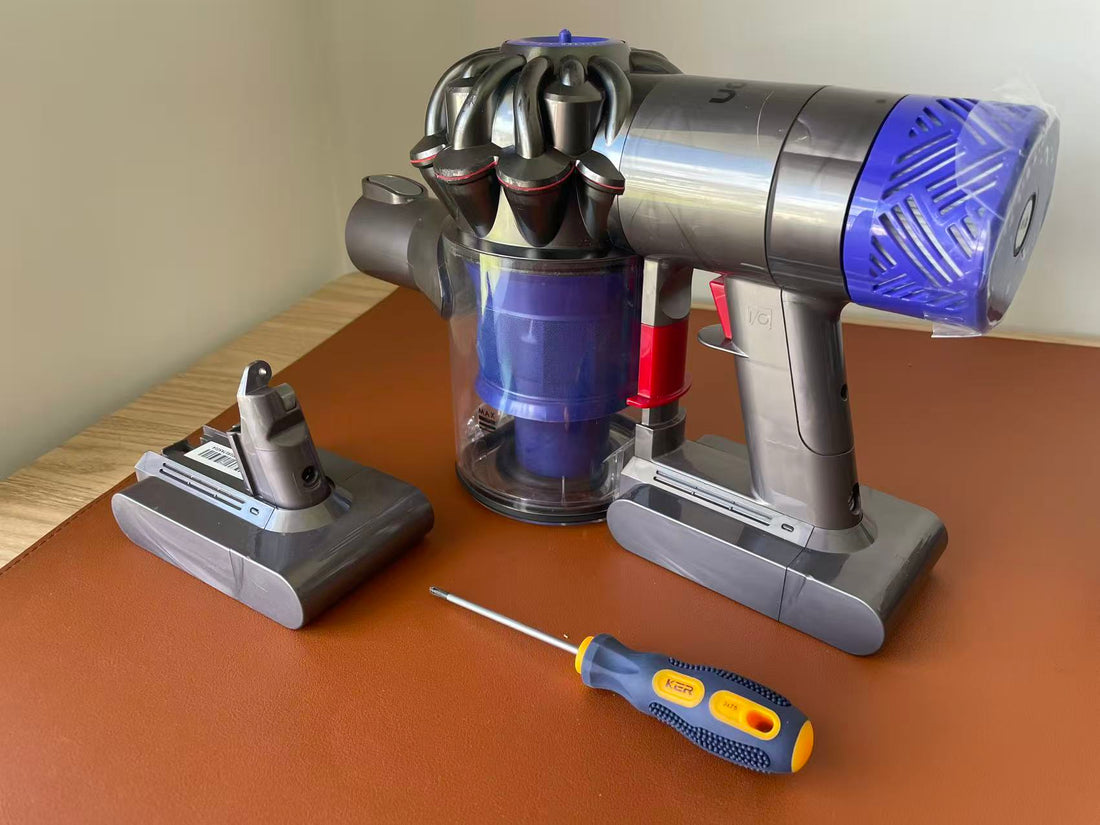

Step-by-Step: Replace a Dyson V6 Battery
Time: ~2 minutes | Tools: Small Phillips screwdriver
What you’ll need
- Phillips screwdriver
- Replacement V6 battery (genuine or high-capacity aftermarket)
- Clean pre-filter recommended
-
Power down & remove bin
Unplug the charger. Pull the red bin lever to open the dustbin and slide the bin off to expose the battery’s front screw.
-
Undo the two screws
One screw is in the handle base; the other is at the front (where the bin was). Keep the screws safe.
-
Slide out the old battery
Pull the pack straight out. Check terminals for dust/debris and wipe gently if needed.
-
Install the new battery
Slide the new pack in until it clicks. Refit the two screws (snug, not over-tight).
-
Refit the bin & first charge
Slide the bin back on. Put the V6 on charge until the light goes solid. Do a quick test on normal mode.
Which V6 Battery Should I Buy?
| Option | Best for | Pros | Consider | Link |
|---|---|---|---|---|
| Genuine V6 Battery (tested) | OEM feel, reliability, resale value | Factory fit/finish, consistent BMS, predictable runtime | Higher upfront cost vs aftermarket | View |
| Aftermarket High-Capacity | Value, longer standard-mode cleans | Great price-to-runtime, good daily performer | Quality varies by supplier—buy reputable | View |
Quick Troubleshooting (Before/After a Battery Swap)
| Symptom | Likely Cause | Fix |
|---|---|---|
| V6 pulses on/off | Clogged filter / blocked cyclone | Replace/clean filter set: V6 filter set |
| Dies quickly after full charge | Tired battery cells | Install new battery (see options above) |
| No power at all | Charger/terminal issue | Check charger, clean contacts; try known-good charger |
| Brush head stops | Hair wrap / blockage | Clear brush bar & end caps; try without head to isolate |
FAQ
How long should a V6 battery last?
Typically ~18–20 minutes on normal mode (less on Max). High-capacity aftermarket packs can extend standard-mode time.
Do I need to “condition” the new battery?
No special conditioning. First charge until the light goes solid; avoid deep discharges and store/charge at room temperature.
Still pulsing after battery swap?
Replace/clean the filter and check for blockages. New filter set here.
Need Help Choosing?
If you’re unsure which V6 battery suits your use, contact us. We can help you pick between Genuine and Aftermarket High-Capacity, and make sure your filters are sorted.
