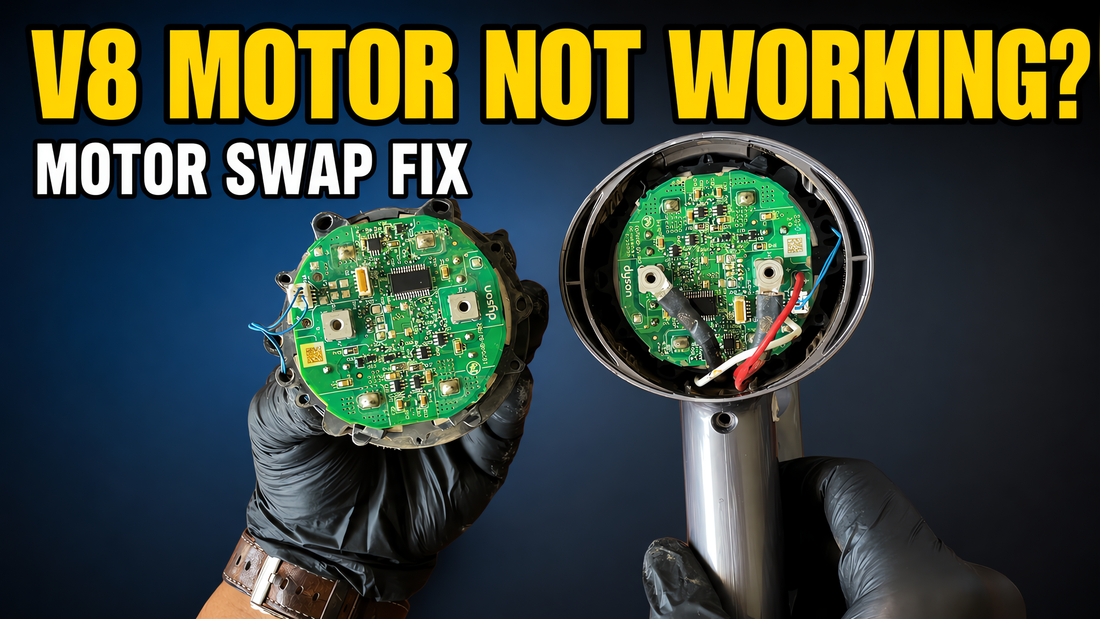

Dyson V7 & V8 Motor Swap: The Complete Donor-Motor Repair Guide
If your Dyson V8 motor has died but the case is still in good shape, you don't need to buy a whole new machine or even a new motor — you can transplant a working motor from a donor unit straight into it. This works across the Dyson V8, V7 SV25, SV37, and V7 Advanced — any machine using this same motor shape. Two details in this guide are the ones that actually cause a "successful" swap to fail afterwards, and most tutorials skip them.
Symptoms this fixes
- Vacuum won't turn on at all, but the trigger and battery test fine
- Motor makes no sound or spins with no suction when triggered
- You have a machine with a cracked/damaged case but a good motor, and a second machine with a good case but a dead motor
Fits Dyson V8, V7 SV25, SV37, and V7 Advanced.
What you need
- A donor motor (from a machine with a working motor but damaged case), or a replacement V8 motor assembly
- Phillips (PH) screwdriver
- Torx (TA) screwdriver
- Flathead screwdriver
- Small Phillips screwdriver, for the internal cable connectors
Splitting both cases apart
Start with the donor unit. Pull the filter, then push the case down and off from the end — it should come apart easily if nothing's cracked internally. Clean the motor and the housing thoroughly before you go any further; you're about to reuse both, and dust in the wrong place causes problems later.
Disconnecting the trigger wiring
Work the Torx screws holding the trigger and motor housing together, then gently pry from both sides with a flathead to separate them — this part can get messy with dust. Two small cable connectors need to come off next; use a small Phillips screwdriver to gently lever them open rather than pulling on the cables directly.
Removing the faulty motor
Take the black cover off first, then work the Torx screw holding the motor in. The motor should slide out slowly once it's free — don't forget the small rubber grommet piece that sits with it, you'll need to transfer that across to the donor motor as well.
The step most guides skip: reconditioning the connector posts
Before the donor motor goes in, the two connector posts on the motor need to be "reconditioned" — squeeze them together gently so they're closed up, not splayed apart. This is what makes the connector grab and click into place automatically once you push the motor home. Skip this step and the connection will feel loose or fail to seat properly, even though everything looks correctly assembled.
Wire polarity matters
When you thread the two cables through the bottom of the housing, get the colours right: white goes on the left, red on the right. Red is the positive terminal. Get this backwards and the motor won't run even though every other step was done correctly.
Test before you close it up
With the dustbin and a cleaner head attached, test the motor before you commit to final reassembly. If it spins up properly, you're done with the hard part — everything left is just putting the housing back together.
Final assembly
Reattach the trigger housing, threading the cables back through as you go, and push it down rather than trying to force it up into place — it seats far more easily that way. When you put the filter back in, put it on the filter first before pushing the whole assembly back into the case top-down — doing it the other way around is how you end up pinching your hand.
